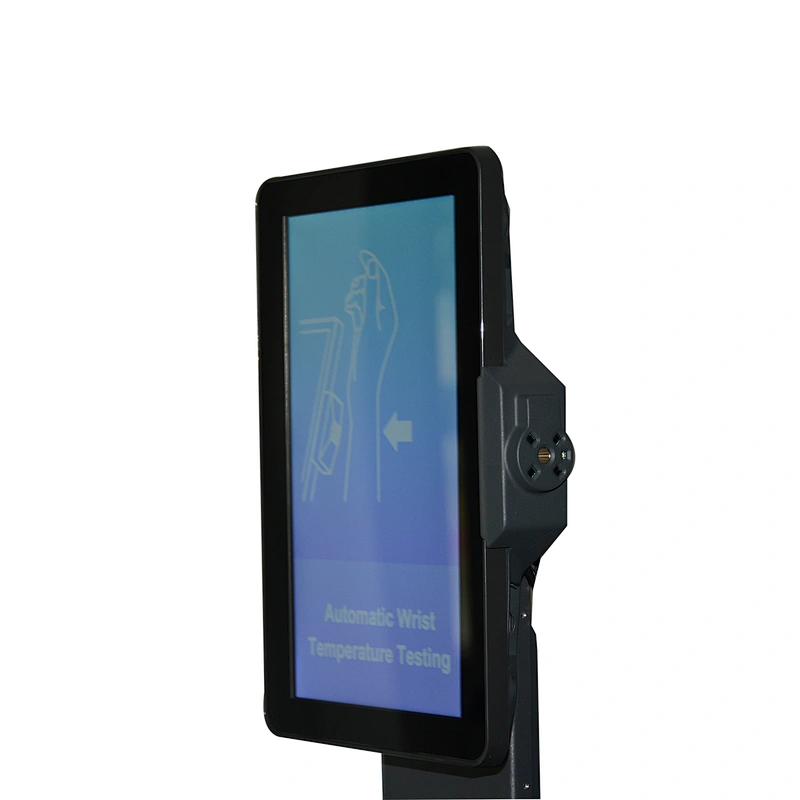

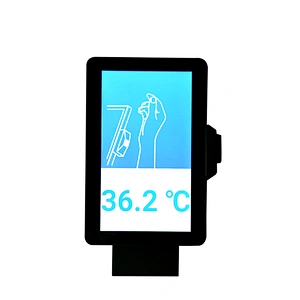

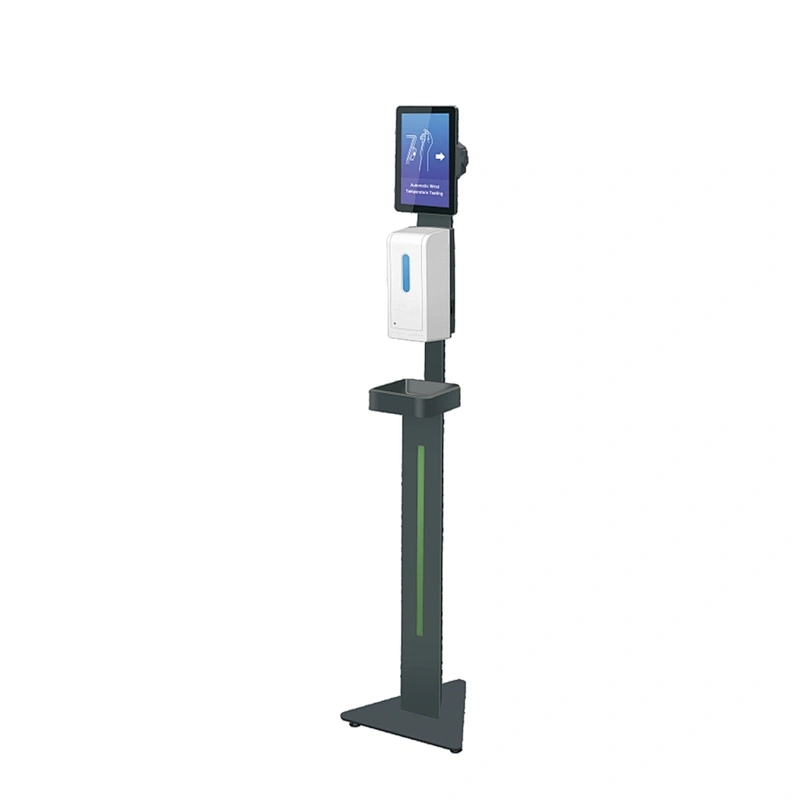

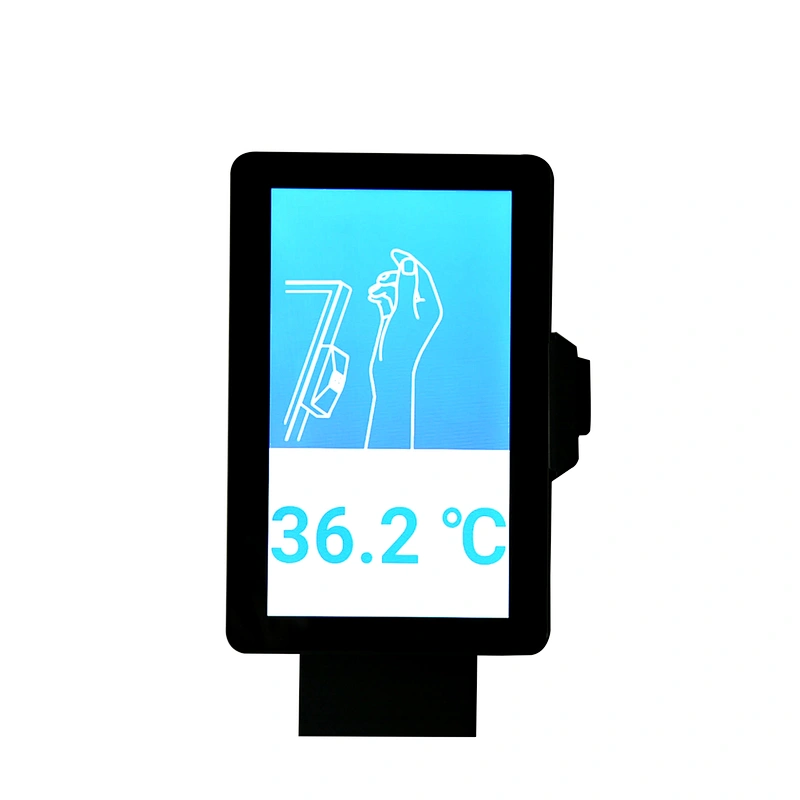

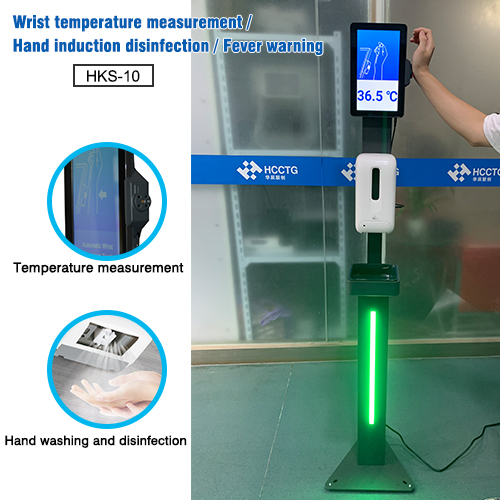

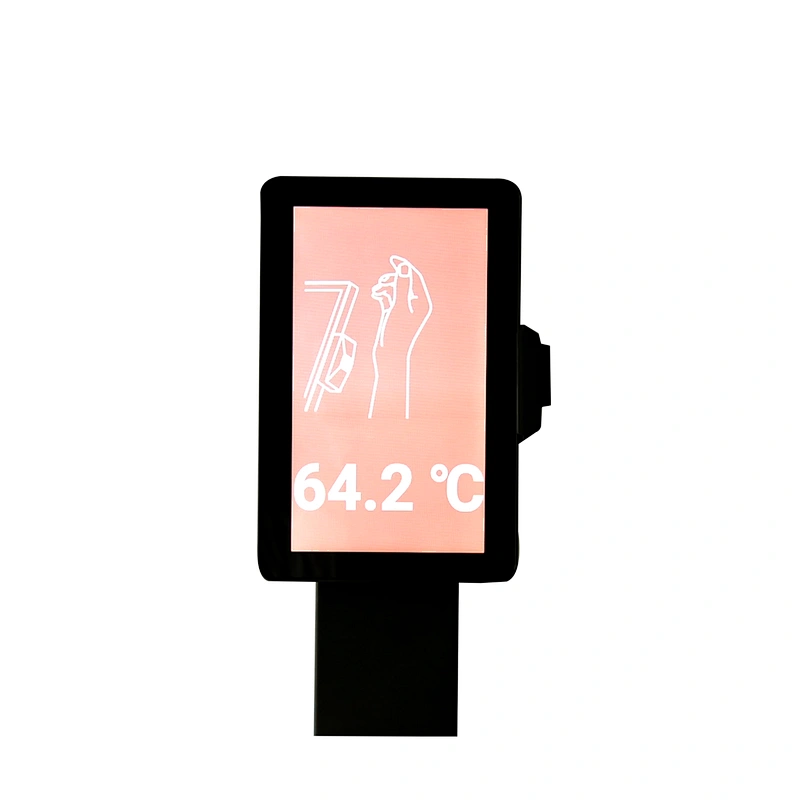

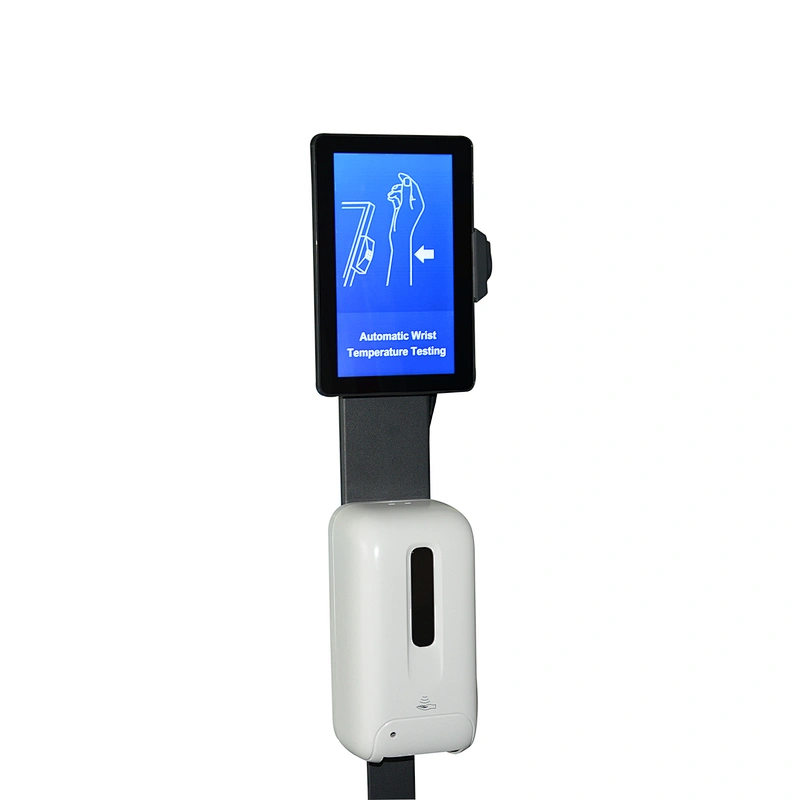

Temperature measurement + Hand washing induction machine

Type

Item

Description

Pad

System

Android 6.0

CPU

RK3128 , Quad core A7,1.2GHz

Memory/Storage

1G-DDR3 / 8G-EMMC

Loudspeaker

2W

WIFI

802.11b/q/n,2.4G

Input power

DC12V 3A

Display

Screen size

10.1 inch

Screen resolution

1024×600

Display direction

Vertical display

Lifetime

40000H

Touch screen (optional)

Size

10.1 inch full plane capacitive touch screen, default

3 touch points, maximum 10 touch points

Construction

Glass+Glass

Tempering type

Chemically strength tempered glass

Surface hardness

＞6H

Thermometer

Induction mode

Infrared induction

Display accuracy

0.1℃

Temperature mode

measurement range

32.0℃～43.0℃

Measuring distance

range

0～5mm

Measurement

accuracy

32.0℃～43.0℃Inside：±0.2℃

32.0℃～43.0℃Outside：±0.3℃

Clinical repetitive

≤±0.3℃

Camera (optional)

Pixel

8 million.3280*2464 (4:3)

Focus

Auto focus 15cm to infinity

Camera field angle

79°

LED indicator

Input voltage

12V

Color

Green light, red light

Length of light bar

55CM

Lifetime

40000H

Automatic hand sanitizer

Sensing method

Infrared auto-sensing

Sensing range

0～12CM

Response time

25ms

Power supply

4 pieces of C size battery(Non rechargeable),

(Or DC6V power supply (optional) can not use with

battery)

Battery working time

10000h

Switch

Switch keys

Installation mode of

liner

Independent assembly, easy to replace and clean

Liquid capacity

1000ml

Liquid pump

Spray (also supports Soap / Foam)

Life 500K times

Spraying volume

1.2ml(Spray)

Opening method

Open with safety key

Liquid exchange

method

Manual open cover to replace liquid

Shell material

Environmental ABS materials

Other

Shell material

The bracket is made of metal, and the display

screen and back shell are made of plastic

Installation method

Floor stand

Work environment

Indoor

Working temperature

10.0℃～40.0℃ RH≤85%

Atmospheric pressure70kPa～106 kPa

Storage environment

-10.0℃～50.0℃

RH≤85%

Certificates compliance

CCC / CB / CE / FCC / ROHS
